Phenolic duct system specification
Duct insulation suppliers
Phenolic Foam (PF) Pre-Insulated air duct is rigid CFC and HCFC Free cellular foam insulation material with a substantially closed-cell structure, whose polymer structure is made primarily from the poly-condensation of phenolic, its homologous and/or derivatives with aldehydes and ketones.Phenolic Foam (PF) Pre- Insulated duct has various distinct properties that make it better than any other conventional insulation materials especially lower thermal conductivity and...
why do chinese projects likes phenolic duct panel
Phenolic pre-insulated duct panels are a type of HVAC ductwork that combines insulation and the duct structure into a single unit. They are typically composed of a phenolic foam core sandwiched between layers of aluminum foil or galvanized steel (GI). This construction offers several advantages, including improved thermal performance, reduced air leakage, and lighter weight compared to traditional metal...

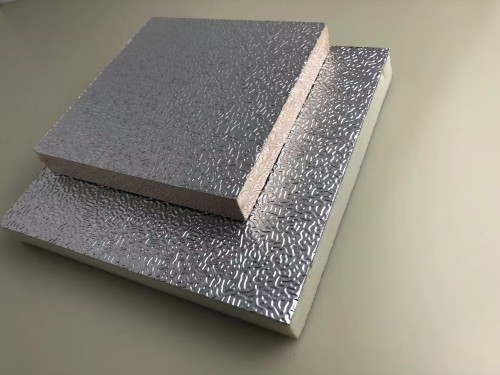

PIR Pre-insulated Duct Panel consist of 20mm thickness
PIR Pre-insulated Duct Panel consist of 20mm thickness closed cell PIR insulation foam and 80 micron thickness aluminum foil. The aluminum foil is embossed on both sides .PIR Air Duct Panel has a high performance insulating material with excellent thermal resistance and fire resistance. This kind of material has a wide range of applications in HVAC (Heating, Ventilation and Air Conditioning Duct) systems. It is a kind of fireproof duct board.
Fiberglass Board Insulation
HVAC Board Insulation products are used to insulate interior and exterior commercial HVAC ductwork. Fiberglass is the most commonly used HVAC insulation; however we also have mineralwool insulation boards for sale, which have a higher temperature rating (used more for industrial ductwork). Fiberglass Board Insulation: We offer insulating boards in multiple thicknesses (1", 1-1/2", 2") and multiple facings (Plain, ASJ, FRK) and multiple densities (3#/6#). ASJ Facing: White poly-encapsulated...
How to Choose Duct Panel for Your Project?
Duct Panel with Double Sides Aluminum Foil
This duct panel double sides facing with 0.04-0.1mm, suitable for duct system used for all kinds of buildings, such as hotel, shopping mall, office building, factory, villa and clean room level 1000 to 300,000.
Duct Panel with Surface Smooth Steel / Aluminum Foil
This duct panel one side smooth color steel, and one side aluminum foil. Suitable for workshop and lab with cleanliness level 10 and level 100.
What Are The Applications Of Duct Panels?
Duct panels are mainly used to construct the ductwork system, which carries cold and warm air throughout different types of buildings including:
Residential Buildings
Ducts panels are essential to construct the heating, ventilation, and air conditioning (HVAC) systems of residential complexes, Houses, Apartments, Hotels, Dormitories, and all other housing needs.
Commercial buildings
A wide range of duct panels are available to suit all commercial buildings ductwork including supermarkets,...
Duct panels are available in different types, dimensions, materials and shapes.
Duct panels are the elements used to form the ducts or carrier framework of heating, ventilation, and air conditioning (HVAC) system, they are used mainly to deliver air to the conditioned space, return air, and exhaust air. Duct panels are essential to residential, commercial and industrial air management system; their main function is to distribute cold and warm air throughout the building, while it ensure the best indoor air quality as well as thermal comfort. Duct panels are available in...
PanelDuct transition pieces are of eccentric design and come in two angles
Goled horse transition pieces are of eccentric design and come in two angles: shallow (14°) and sharp (37.5°).
The 37° Transition offers an agressive reduction in cross sectional area. Reduce the height by 50mm for a transition length of 130mm. This taper can be further reduced by increments of 50mm, up to a max. of 1000mm. At 37°, the length of a 1000mm reduction will be 1300mm.All transition panels are supplied with integrated aluminium flanges on either end.

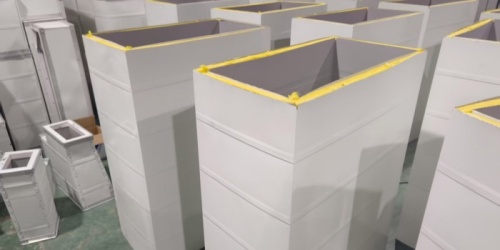

Duct Panels
PanelDuct® panels can accommodate the full size and range of any ventilation system, including all fittings and accessories.
The entire range can be ordered according to the sizes indicated on each of the individual panel pages below… Ducts are sized from 150mm to 1200mm at increments of 50mm.
Standard Length: 1450mm. Panels can be ordered trimmed to any shorter length.
Panels can be easily modified for onsite complications.

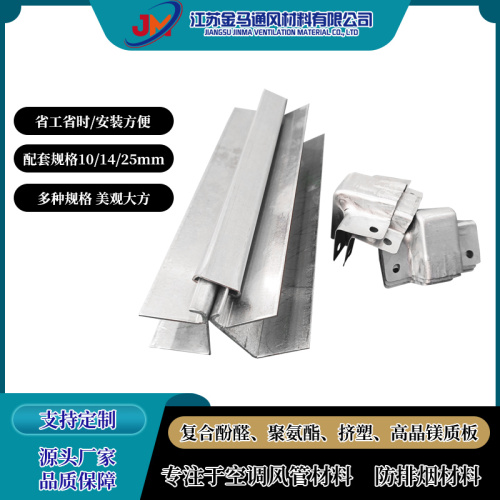

do you know ductwork mounts
Ductwork mounts The gold horse ventilation panels are so lightweight that the number and sizing of the anchor sleeves is minimised. The weight of 20mm panels varies between 0.7 and 0.9 Kg/m², depending on the density of the selected model. On average, the weight of the duct taken as reference for the anchoring systems is 1.4 Kg/m² (including profiles and accessories), multiplied by two as a precautionary measure. The anchoring systems are selected by the fitter who takes full responsibility for...
duct panels
DUCTS is manufacturig insulation panels and pre-insulated air duct systems in the brand name ALPHA which are prime quality insulation panels and air ducts meeting the international quality ,health,safety,environment and air ducts meeting the international quality, health,safety,environment and fire standards.
It is certified to the highest international standards of quality,occcupational health,saety and environment:ISO9001,ISO14001 and ISO45001.
